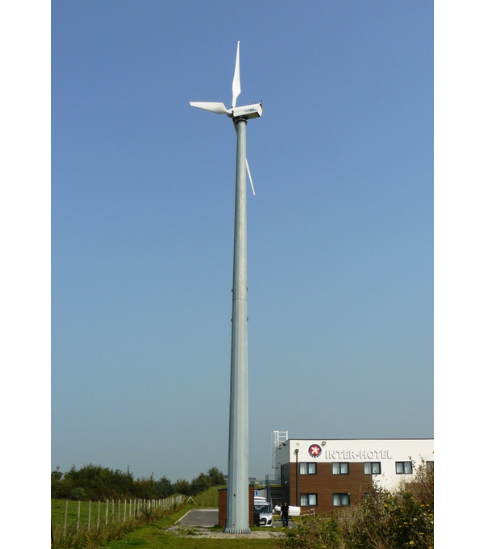

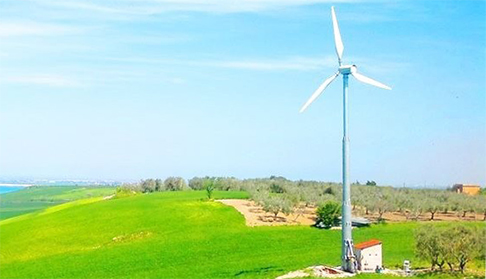

40kW - GP YONVAL
31-10-2014
Especificações:
• Turbine
Configuration: 3 Blades, horizontal axis, upwind
Wind Class: SWT III
Rated Power: 40 kW
Rated wind speed: 11 m/s
Cut-in wind speed: 3,5 m/s
Cut-out wind speed: 24 m/s
Survival wind speed: 52,5 m/s
Yaw System: Active / Electric
• Applications: On-Grid
• Rotor
Rotor diameter: 15,9 m²
Swept Area: 199 m²
Power regulation: Active stall
Rated rotor speed: 50 rpm
• Generator
Type: Induction
Configuration: 3 phases - 400 V - 50 Hz
Gearbox: 1 : 29.95
• Safety systems
Failsafe brake
Two speeds active yaw control system
Active generator torque control
• Tower
Free standing monopole: 23 and 30 m
Climbing system and platform
• Controller
Intelligente controller
Integrated power converter
Remote monitoring and control
User-friendly IPC panel
The intelligente controller with its integrated power converter provides clean power and ensures both a simple and efficient grid interconnection.
